Dude that thing is sick....very nice how an older bike doesnt look so old and outdated!!
GT STS DH Lobo
Posted this in VRC but thought I should also post it here.
Here's a few pics of my recently built Lobo. Sourced an unused frame and it then took me months to source the parts. Labour of love for one of my dream bikes BITD. Yep I know they're prone to breaking and there's far better modern builds out there BUT building this has taken me back 10 years to when I had no wrinkles or grey hair
Here's the finished spec and a few pics
Frame: 1998 GT STS Lobo DH, Bonded Carbon fibre thermoplastic/aluminum
Fork: Marzocchi Monster T
Rear Shock: Rock Shox Coupe Deluxe Yank, 6.5" travel
Headset: Hope Industries Anodised Red with Head Doctor
Stem: Azonic Equalizer
Handlebar: FSA Carbon Pro Low Riser
Grips: Toxsin Lock-on
Brakes: Hope Enduro 4
Brake Pads: OEM Hope Sintered
Brake Cables: Hope Hose Black
Brake Discs: Hope 203mm Rear, 160mm Front
Disc Adapter: Therapy Components?????? (not sure as it came with frame)
Brake Levers: Hope Enduro 4
Frame Hose Guides: Hope Silver
Shifters: Shimano XTR M952 9 Speed Rear
Rear Derailleur: Shimano XTR M960
Cabling: Shimano XT
Cassette: Shimano XT M770 9 Speed
Chain: Shimano HG73 9 Speed
Cranks: Adventure Components AC 7075-T6 175mm
Crank Bolts: Brand-X M8 Self Extracting Anodised Red
Chainrings: Adventure Components AC Holeshot 42T 110 BCD
Chain Guide: Adventure Components AC Pro Guide
Chainring Bolts: Brand-X 7075 Alloy Red
Bottom Bracket: Shimano UN73 73mm x 122mm
Pedals: Shimano M424 SPD/Platform
Saddle: WTB Speed V
Seatpost: USE Sumo 31.6 x 300mm
Seatpost Binder: X-Lite Red
Hub Skewers: XT Rear, 20mm Marzocchi Bolt Through Front
Rear Rim Brake Mount Blanks: X-Lite Red
Wheelset: Mavic 321 Disc on Hope Hubs
Tyres: Maxxis Ignitor 2.1 Front, 2.3 Rear
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()

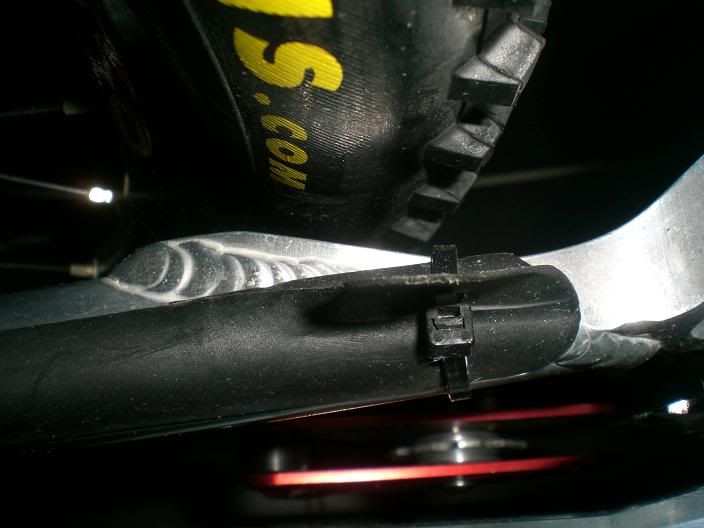

Although the frame was mint the existing decals had gone brittle with age and had started to flake. Had a new set reproduced which are pretty damn good copies, not perfect but good enough. The frame had to be 'tweeked' for the rear hose guides. The existing cable guides were given the Dremel treatement and a set of Hope Hose guides fitted. Got a few little jobs to do. Extend front Brake Hose, fit rear cabling, fit chain and setup chainguide.
Slight problem though. Far too nice and mint to ride in all this winter mud and snow :nono: so it'll be kept for the Spring Sunshine
Here's a few pics of my recently built Lobo. Sourced an unused frame and it then took me months to source the parts. Labour of love for one of my dream bikes BITD. Yep I know they're prone to breaking and there's far better modern builds out there BUT building this has taken me back 10 years to when I had no wrinkles or grey hair
Here's the finished spec and a few pics
Frame: 1998 GT STS Lobo DH, Bonded Carbon fibre thermoplastic/aluminum
Fork: Marzocchi Monster T
Rear Shock: Rock Shox Coupe Deluxe Yank, 6.5" travel
Headset: Hope Industries Anodised Red with Head Doctor
Stem: Azonic Equalizer
Handlebar: FSA Carbon Pro Low Riser
Grips: Toxsin Lock-on
Brakes: Hope Enduro 4
Brake Pads: OEM Hope Sintered
Brake Cables: Hope Hose Black
Brake Discs: Hope 203mm Rear, 160mm Front
Disc Adapter: Therapy Components?????? (not sure as it came with frame)
Brake Levers: Hope Enduro 4
Frame Hose Guides: Hope Silver
Shifters: Shimano XTR M952 9 Speed Rear
Rear Derailleur: Shimano XTR M960
Cabling: Shimano XT
Cassette: Shimano XT M770 9 Speed
Chain: Shimano HG73 9 Speed
Cranks: Adventure Components AC 7075-T6 175mm
Crank Bolts: Brand-X M8 Self Extracting Anodised Red
Chainrings: Adventure Components AC Holeshot 42T 110 BCD
Chain Guide: Adventure Components AC Pro Guide
Chainring Bolts: Brand-X 7075 Alloy Red
Bottom Bracket: Shimano UN73 73mm x 122mm
Pedals: Shimano M424 SPD/Platform
Saddle: WTB Speed V
Seatpost: USE Sumo 31.6 x 300mm
Seatpost Binder: X-Lite Red
Hub Skewers: XT Rear, 20mm Marzocchi Bolt Through Front
Rear Rim Brake Mount Blanks: X-Lite Red
Wheelset: Mavic 321 Disc on Hope Hubs
Tyres: Maxxis Ignitor 2.1 Front, 2.3 Rear
Although the frame was mint the existing decals had gone brittle with age and had started to flake. Had a new set reproduced which are pretty damn good copies, not perfect but good enough. The frame had to be 'tweeked' for the rear hose guides. The existing cable guides were given the Dremel treatement and a set of Hope Hose guides fitted. Got a few little jobs to do. Extend front Brake Hose, fit rear cabling, fit chain and setup chainguide.
Slight problem though. Far too nice and mint to ride in all this winter mud and snow :nono: so it'll be kept for the Spring Sunshine
15
1 - 20 of 37 Posts
Brings back memories.
Except the XC tires on a dh bike.
Except the XC tires on a dh bike.
Wow - beyond awesome - almost got the same feeling as I did the first time I saw those things - still look like a work of art
Thanks for the comments guys. Only just got this bike up to this stage of the build. Been working on it since August this year. Also sourced a lot of spare parts for the future including a full bearing and bush set and 2 NOS Shocks. Hint for any other Lobo owners - grab what you can NOW!
Yep I totally agree with the look of older bikes compared with modern hydroformed frames. Lots of nice CNC work and polished to a mirror finish. I will ride it, not too seriously though, more of a keeper as a work of art and historical importance.
The tyres (spelt with a Y as I'm a Brit) seem to be causing some concern. The rear is pretty mush already max'd out at 2.3, the chainstays are very tight on the rubber. It's simply not worth causing damage by risking a 2.5. I think the bike came originally with 2.2 Michelins. The front tyre does look a bit flimsy on the forks but with the Monster's I think anything would.
![]()
![]()
Some on other Forums are saying that perhaps it should be setup with Boxxer 151's but these Forks are the the first Monster T's produced in 1998 so perfect for the age of the frame. OK they are heavy but are simply way ahead of the competition in build quality and IMHO looks. Match made in Heaven (or Hell!).
May not be too good around corners but with these baby's coners don't exist you just go straight
Yep I totally agree with the look of older bikes compared with modern hydroformed frames. Lots of nice CNC work and polished to a mirror finish. I will ride it, not too seriously though, more of a keeper as a work of art and historical importance.
The tyres (spelt with a Y as I'm a Brit) seem to be causing some concern. The rear is pretty mush already max'd out at 2.3, the chainstays are very tight on the rubber. It's simply not worth causing damage by risking a 2.5. I think the bike came originally with 2.2 Michelins. The front tyre does look a bit flimsy on the forks but with the Monster's I think anything would.
Some on other Forums are saying that perhaps it should be setup with Boxxer 151's but these Forks are the the first Monster T's produced in 1998 so perfect for the age of the frame. OK they are heavy but are simply way ahead of the competition in build quality and IMHO looks. Match made in Heaven (or Hell!).
May not be too good around corners but with these baby's coners don't exist you just go straight
