'Gator windcutter brake track request...please...

955 Views 13 Replies 9 Participants Last post by nino, Jun 25, 2009

G-Live

Discussion Starter · Jun 22, 2009

Could someone post a pic of what the rotor "burn in" should look like on the windcutter/serrated rotor.

I just got a windcutter for the rear of my supercal. I do not think that that brake pads are tracking correctly on the rotor because all of the "burn in" is only on the cut out surface and goes all the way to the outer diameter. Using stock Juicy 5 hardware, size 160mm.

Thanks
G

Save

1 - 14 of 14 Posts

nikoli8

· #2 · Jun 23, 2009

G live could you throw up a picture also

Save

evil zlayo

· #3 · Jun 23, 2009

this rotor was used on oro's and now on mine m775. i have the same "burn in" as you, and believe it's normal, everything's working perfectly

See less See more

Save

G-Live

Discussion Starter · #4 · Jun 23, 2009

evil zlayo said:
this rotor was used on oro's and now on mine m775. i have the same "burn in" as you, and believe it's normal, everything's working perfectly

My burn in is a few mm further outboard than yours. The inner diameter of the burn track crosses the cut outs only and does not reach the outermost full circle part of the rotor. I'll have to pull the pad to see if the top is not being touched by the rotor.

Do i need to shave some of the adapter?

G

Save

G-Live

Discussion Starter · #5 · Jun 23, 2009

nikoli8 said:
G live could you throw up a picture also

I'll try ASAP.
G

Save

Soya

· #6 · Jun 24, 2009

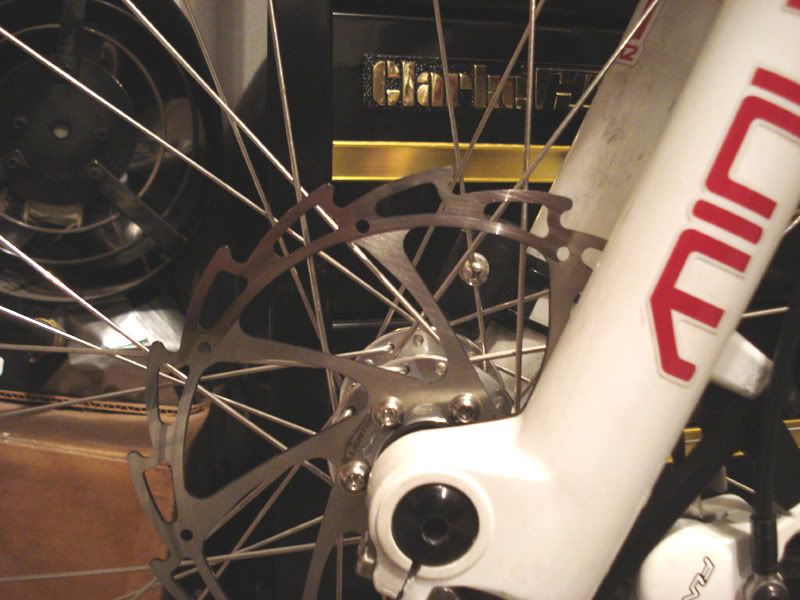

Here's the track on mine, with Funn F2's.

See less See more

Save

G-Live

Discussion Starter · #7 · Jun 24, 2009

I have found a few pics and BB sent me a pic of his and it seems like I am at least 2-3mm outboard from where I should be. I plan on taking some paint off of the adapter and shave it a bit if needed.

G

Save

xc71

· #8 · Jun 24, 2009

Soya look the same as mine, which is ideal, the pad is 1-2 mm inboard from the outer edge of the rotor.

Save

xcracer87

· #9 · Jun 24, 2009

G-Live said:
My burn in is a few mm further outboard than yours. The inner diameter of the burn track crosses the cut outs only and does not reach the outermost full circle part of the rotor. I'll have to pull the pad to see if the top is not being touched by the rotor.

Do i need to shave some of the adapter?

G

Yes! i had to do this on my front elixir CR brake.

Save

G-Live

Discussion Starter · #10 · Jun 24, 2009

xcracer87 said:
Yes! i had to do this on my front elixir CR brake.

How do they work with the Elixirs? My plan is to replace the J7's on my Supercal with Elixir Rs and put the J7s on the HT.

G

Save

spongstick

· #11 · Jun 25, 2009

new pads for new rotor

evil zlayo said:
this rotor was used on oro's and now on mine m775. i have the same "burn in" as you, and believe it's normal, everything's working perfectly

I have a set of 775.Did you buy new pads when you installed the new rotors?or can i use my old stock pads?Thanks

Save

xcracer87

· #12 · Jun 25, 2009 (Edited)

worked good. not awesome. I went through a pair of OE sintered pads on the rear quick but I'm going to give it another try with a fresh set of pads.

edit.
