Desperately need a bolt for my 2010 S-Works Epic

3130 Views 24 Replies 11 Participants Last post by GregPatz, Jan 14, 2022

kattanm

Discussion Starter · Oct 18, 2021

Hi friends,
I have really enjoyed my new-to-me 2010 S-Works Epic 29er. I have upgraded the hell out of it with great stuff!

Now I'm in big trouble. I was shredding as usual when I noticed my rear wheel flopping around badly, especially rubbing the right chain stay. I thought I broke a spoke, but no such luck. I lost a bolt. This turns out to be a precious proprietary bolt that no one sells anymore. I'll circle what I need:

Household hardware Art Cylinder Auto part Gas

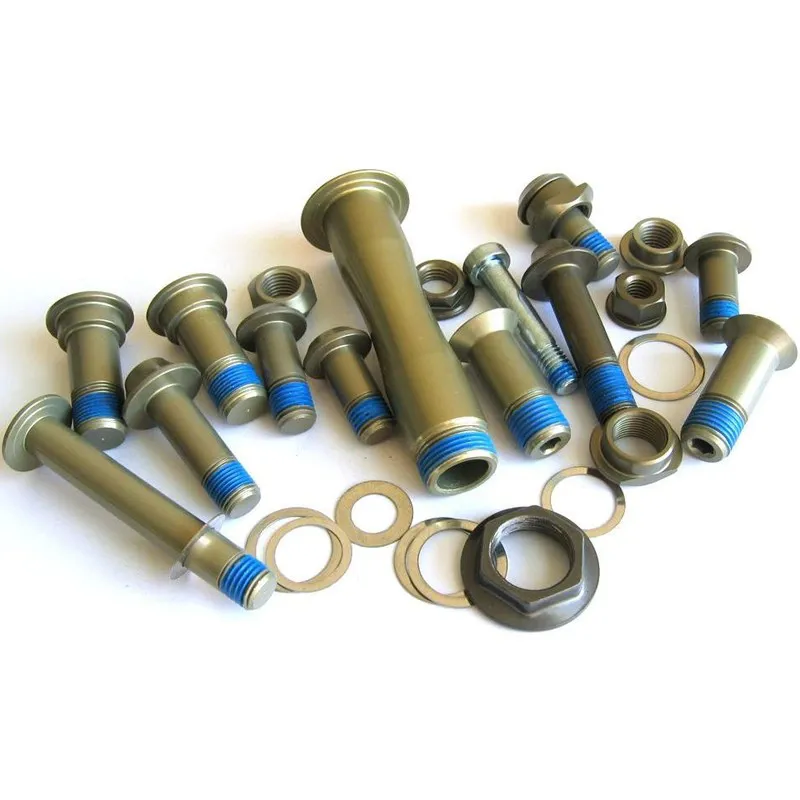

In the good old days, you could buy the kit:

www.mcconveycycles.com

Specialized 2009-2010 Epic/Era Bolt Kit 9899-5180

Specialized 2009-2010 Epic/Era Bolt Kit 9899-5180

www.mcconveycycles.com

Without this magic bolt, my frame is totaled. Help!

See less See more

1 - 20 of 25 Posts

thatalexguy

· #2 · Oct 18, 2021

Give your local Specialized regional office a call. They may be able to help.

Sent from my Pixel 4a using Tapatalk

127.0.0.1

· #3 · Oct 18, 2021

find a local machinist and bring the other bolt,

a new one can be cheffed up on a lathe in minute$$$

Reactions: 1

kattanm

Discussion Starter · #4 · Oct 18, 2021

127.0.0.1 said:
find a local machinist and bring the other bolt,

a new one can be cheffed up on a lathe in minute$$$

Oh, this is brilliant! I need to find this local machinist person but am going to try.

kattanm

Discussion Starter · #5 · Oct 18, 2021

thatalexguy said:
Give your local Specialized regional office a call. They may be able to help.

Sent from my Pixel 4a using Tapatalk

Oh interesting. I didn't even know I had a local regional office! I suspect my (very good) LBS is doing this on my behalf now. They are "trying something" but I'm not sure what.

thatalexguy

· #6 · Oct 18, 2021

kattanm said:
Oh interesting. I didn't even know I had a local regional office! I suspect my (very good) LBS is doing this on my behalf now. They are "trying something" but I'm not sure what.

Regional as in North American, European, UK etc sales or technical office. Taking the bolts to a machinist to replicate is a great idea

Sent from my Pixel 4a using Tapatalk

kattanm

Discussion Starter · #7 · Oct 18, 2021

thatalexguy said:
Regional as in North American, European, UK etc sales or technical office. Taking the bolts to a machinist to replicate is a great idea

Sent from my Pixel 4a using Tapatalk

Yes, and if anyone reading this happens to be a machinist with my bike and a PayPal account, let's do business ha ha!

127.0.0.1

· #8 · Oct 18, 2021

watch cutting edge engineering, or abom79 youtube channels....
machinists can fix and make anything

Calsun

· #9 · Oct 18, 2021

Not as simple as it sounds as it needs to be a case hardened bolt or it is going to break again. I would try to order two of these from Specialized so as to have a spare one in the future. In some ways it is a manufacturing defect as the engineers under specified the bolt in terms of the material or case hardening.

A product my company makes has a shaft that was being broken when the tool was being used in industrial machinery which was not its planned use. We found that by using a different tempering process (that added about $1 US to the cost of the shaft) it could resist twice as much torque without breaking.

Maybe Specialized would sell you a new frame at a substantial discount. I say maybe as Specialized is not a company that seems to care about customer support after the sale has been made,

It does point out the hazards of buying a 10 year old bike. One can replace many of the parts but with hardtail there is a chance of a cracked crown and not fixable and with a full suspension bike there are special parts that the manufacturer will not keep in inventory once that model goes out of production.

Someone has posted a Stumpjumper for sale at a discounted price as it has a crack on the stock yoke. This begs the question as to what else is in danger of failing even if the yoke can be replaced. Especially with FS bikes where they are usually jumped the value of a used bike needs to be considered with caution.

See less See more

kattanm

Discussion Starter · #10 · Oct 18, 2021

Calsun said:
Not as simple as it sounds as it needs to be a case hardened bolt or it is going to break again. I would try to order two of these from Specialized so as to have a spare one in the future. In some ways it is a manufacturing defect as the engineers under specified the bolt in terms of the material or case hardening.

A product my company makes has a shaft that was being broken when the tool was being used in industrial machinery which was not its planned use. We found that by using a different tempering process (that added about $1 US to the cost of the shaft) it could resist twice as much torque without breaking.

Maybe Specialized would sell you a new frame at a substantial discount. I say maybe as Specialized is not a company that seems to care about customer support after the sale has been made,

It does point out the hazards of buying a 10 year old bike. One can replace many of the parts but with hardtail there is a chance of a cracked crown and not fixable and with a full suspension bike there are special parts that the manufacturer will not keep in inventory once that model goes out of production.

Someone has posted a Stumpjumper for sale at a discounted price as it has a crack on the stock yoke. This begs the question as to what else is in danger of failing even if the yoke can be replaced. Especially with FS bikes where they are usually jumped the value of a used bike needs to be considered with caution.

Depressing but fair. However, I believe the bolt worked its way out rather than broke...hard to prove, but my mechanic said this was a common problem in these bikes.

Wombat

· #11 · Oct 18, 2021

It looks like bikeinn have it in stock: Specialized MY11-13 Epic 26/29 Carbon Bolt Kit Silver, Bikeinn

Tim

kattanm

Discussion Starter · #12 · Oct 18, 2021

Wombat said:
It looks like bikeinn have it in stock: Specialized MY11-13 Epic 26/29 Carbon Bolt Kit Silver, Bikeinn

Tim

That's for the 2011-2013 Epics. My LBS said 2010 is different.

127.0.0.1

· #13 · Oct 18, 2021

any machine shop who makes parts will have small diameter rod stock of the hardest materials...it's not about 'making a proper bolt' it's about finding someone who has time to slot you in, get it done, and not break your wallet.

at any rate, someone has to have this part in stock and can sell it to you
failing that and if you want to keep the bike, buy one used, or make the bolt up custom

Amphigory

· #14 · Oct 19, 2021 (Edited)

I do some hobby machining. I don't have the tools & materials for that bolt (it definitely needs to be hardened) but any reasonably competent professional machinist should be able to make it easily on his lunch break. Go talk to your local auto mechanic -- preferably one that restores vehicles but that's not required -- and they'll know where you can find a machinist who could make this.

jimglassford

· #15 · Oct 19, 2021

Others have indicated the bolt must be case hardened. What is it about the picture that makes one assume the bolts are hardened. I am not saying they are or are not, I really do not know. The bike and rider are fairly light compared to most applications. Due to weight concerns, I would think the material is light weight alloys. Since we are talking about one bolt, steel could be used. I would think a person with a lathe would take an existing button head bolt and turn it down. The challenge will be finding the person who will spend the time turning a new bolt. That bolt may cost hundreds.

Is there a such things as a bicycle salvage yard?

slapheadmofo

· #16 · Oct 19, 2021 (Edited)

Seems like you guys are overthinking this (by miles).

Can you post a picture of the location of this bolt on the frame?
It's tough for me to believe this is something that's impossible to deal with using standard hardware for a few dollars.
It's a shoulder bolt FFS.

You should be able to simply measure it and order a few here:

McMaster-Carr

McMaster-Carr is the complete source for your plant with over 595,000 products. 98% of products ordered ship from stock and deliver same or next day.

www.mcmaster.com

127.0.0.1

· #17 · Oct 19, 2021

there is no 'must be' anything with this bolt

case hardened might be spec, but induction hardened will work 110% fine.

ffs....if you can't source an OEM just have one made up...simple and gets you rolling

Reactions: 1

slapheadmofo

· #18 · Oct 19, 2021

127.0.0.1 said:
there is no 'must be' anything with this bolt

case hardened might be spec, but induction hardened will work 110% fine.

ffs....if you can't source an OEM just have one made up...simple and gets you rolling

The link I posted has tons of grade 8 as well as some 12.9.
Shouldn't need to have anything made.

Everyone repeat after me:
"It's just a frigging bolt."

🤪

jimglassford

· #19 · Oct 19, 2021

"It's just a frigging bolt"? NOPE. It is custom made. I had the same issue with a bolt for a Cannondale Scalpel. Spent a lot of time looking at web sites for a replacement. If the measurements are not exact, the bolt will move around in the frame and the bearing.

Reactions: 1

noapathy

· #20 · Oct 19, 2021

I don't know about this bolt per se, but the pivot bolts on my Giant are aluminum (not nearly as strong as something mentioned above). And yes, a good machinist is good at measuring.
