Camera battery?

1780 Views 23 Replies 10 Participants Last post by  MrLee,
M
Just ordered one of these for a project I'm working on -


7.4V 1800mAh

Project involves single XPG driven by a 500mA teapot driver.

Anyone tried using them before? - Anyone got any recommendations for a protection PCB? - Ideally within the UK?

I'll post up results when it arrives.
See less See more
Reply
Save
Like
1 - 20 of 24 Posts
HEY HEY ITS HENDO
maybe it has protection already?
only one way to find out :D
.... and i would be interested in the true, tested capacity :thumbsup:
Reply
Save
Like
M
If it is more than 1000mAh, then I'll be happy enough :)

Just found this one on ebay -


Anyone recognise it?

From what I understand, it seems the battery is connection to B- and B+, Charge/Feed to P-/P+ and COM goes between the two cells?

Can anyone confirm please?
See less See more
Reply
Save
Like
M
Almost all those camera batteries already have a protection PCB inside the pack.
Reply
Save
Like
M
MtbMacgyver said:
Almost all those camera batteries already have a protection PCB inside the pack.
Click to expand...
Ok, well that would make things a lot simpler, so just put a load on it and measure the voltage and see if it cuts out as it discharges when it should?
Reply
Save
Like
yetibetty
I have used camcorder battery packs just like the one pictured.. Built in protection and the true capacity is around 1400mah.
Reply
Save
Like
M
Cheers, I'll post back when I have something up and running,
Reply
Save
Like
A
Have just rebuilt a pack using that same pcb from that seller! connected as you said and works all ok, no probs
Reply
Save
Like
HEY HEY ITS HENDO
ok, lets be having the links to the hardware suppliers :)

more batteries here...http://www.7dayshop.com
Reply
Save
Like
HEY HEY ITS HENDO
MrLee, .. just noticed that the teapot driver is 8-24v input!
...http://cgi.ebay.co.uk/ws/eBayISAPI.dll?ViewItem&item=250768113073&category=66954&emailtemplateid=30134747&sellerid=FpRekKD1aqCbI5FLm2zsJw==&buyerid=RiQT1QfV9O044DQi3yj4EA==&refid=store&ssPageName=ADME:B:SEMK:UK:LISTG
Reply
Save
Like
M
I've never used them before, but some of them are marked at 7v depending which one you get (I don't know why), I've had the 500mA running for a while off a 6v supply and didn't notice any issue.

They look like a great little driver.

I paid 7 quid for the battery inc postage from ebay, so if it works out, then it might be a good solution for a small lightweight battery.
Reply
Save
Like
M
HEY HEY ITS HENDO said:
ok, lets be having the links to the hardware suppliers :)

more batteries here...http://www.7dayshop.com
Click to expand...
Here is a link to the protection board I mentioned that acezone used -

http://cgi.ebay.co.uk/ws/eBayISAPI.dll?ViewItem&item=220739355125&ssPageName=STRK:MEWAX:IT
Reply
Save
Like
M
2
Just reporting back on the camera battery, it does have protection built in as everyone suggested :)

Here are some pictures for size comparison. (It's not intended for the Hammond light) I've not measured real mAh yet, but seems really good.


See less See more
Reply
Save
Like
B
How do you wire up your lights to the camera battery?
Reply
Save
Like
M
ballsofcottonwool said:
How do you wire up your lights to the camera battery?
Click to expand...
Soldered onto the connections, glued in place, then covered with heat shrink. Maybe not one to try if you aren't so quick with an iron.
Reply
Save
Like
M
5
I had a few people ask me about the charger for the camera battery, I've just done another one so thought I would include some photos along the way.

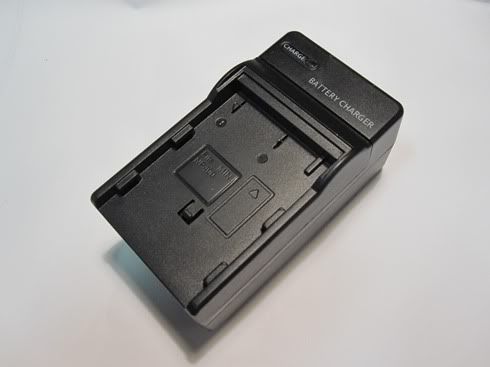

Cheap charger which can be had for a about £5-10 from various online shops including ebay.


Pull the top part down to separate the charger and battery interface.



Open up to reveal the connections.


Drill the bottom of the outer shell and solder on connections to the charger.


Secure everything in place with the glue gun
Reassemble.
See less See more
Reply
Save
Like
M
Mr Lee

I am planning to use one of this battery for a helmet light. Do you think it would be possible to use the top part of the charger to attach the battery to the light - just push it into this holder on the light instead of the holder of a camcorder?

Could you send us the link to the battery and charger please?

Did you test what current you can draw out of the little battery before the protection triggers?
Reply
Save
Like
M
It might be, although you probably want to strap it down somehow. I've not tested the current draw cut off, but I've pulled about 3 amp without problem. If you look on eBay for "gx-10 battery" you can't miss them.
Reply
Save
Like
D
That looks like a Sony camera battery that I have been using for a while. Mine was 7.4v 3300mah. Pulled it apart and parallel wired it to run a straight driven P7 thats been working great. Only about an hour run time, but I mostly do shuttled DH runs. BTW. SONY NP-FH30 was the one I used.
Reply
Save
Like
M
Thank you, I found it:thumbsup:
Reply
Save
Like
