[nauc]

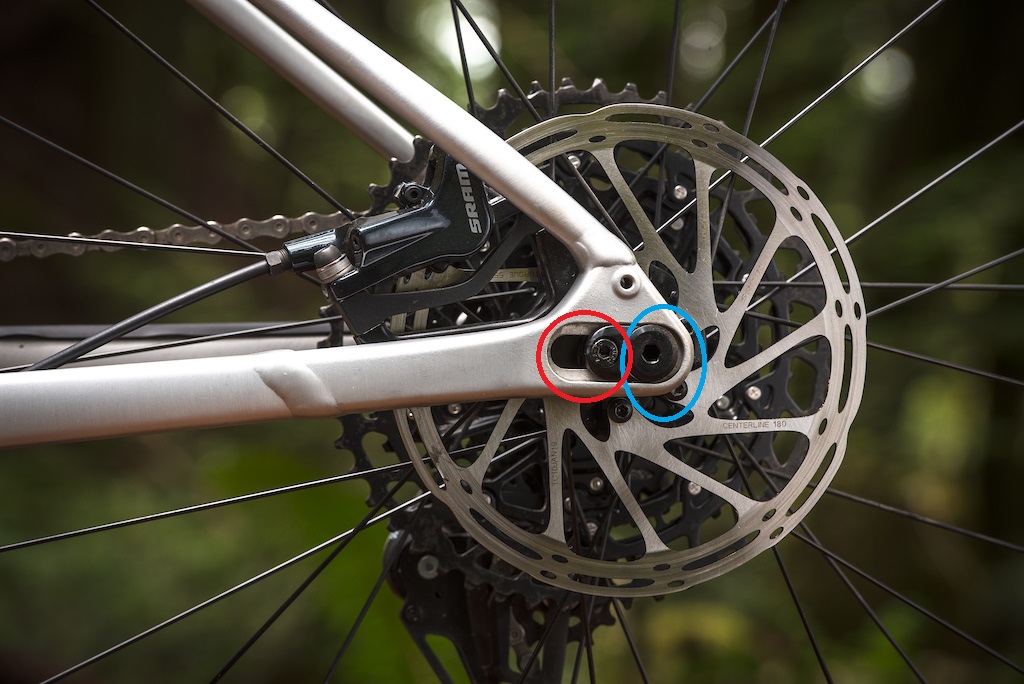

is the bolt circled in blue, the end cap of the axle or what? and the bolt circled in red how you slide the axle back n forth for single speed? if so, is that little bolt strong enough to keep the wheel from sliding back n forth, seems like the wheel would slip? or how does all this stuff work? thanks



[JimF777]

Yeah I don't see a need for it, other than to add weight. I'm wondering, coming from motorcycles, if you were to slide the wheel forward or back, how's the brake caliper attached to keep the disc from moving from the pads?



[nauc]

i didnt even think of that. run different brake mounts, maybe?

idk



[taehome]

is the bolt circled in blue, the end cap of the axle or what? and the bolt circled in red how you slide the axle back n forth for single speed? if so, is that little bolt strong enough to keep the wheel from sliding back n forth, seems like the wheel would slip? or how does all this stuff work? thanks

Blue circle is around thru axle. Red circle is around one of 3 bolts that lock down the sliders. At the very back end of the drop out, there is a bolt on each side of the bike to move the sliders forward and back.

Sent from my iPhone using Tapatalk



[taehome]

Yeah I don't see a need for it, other than to add weight. I'm wondering, coming from motorcycles, if you were to slide the wheel forward or back, how's the brake caliper attached to keep the disc from moving from the pads?

Caliper and axle move together on the sliders.

Sent from my iPhone using Tapatalk



[Fuse6F]

Agree. Looks like the inner plate moves w axle center. Outer small bolt likely holds it to the frame when wheel is removed! Just guessing.
