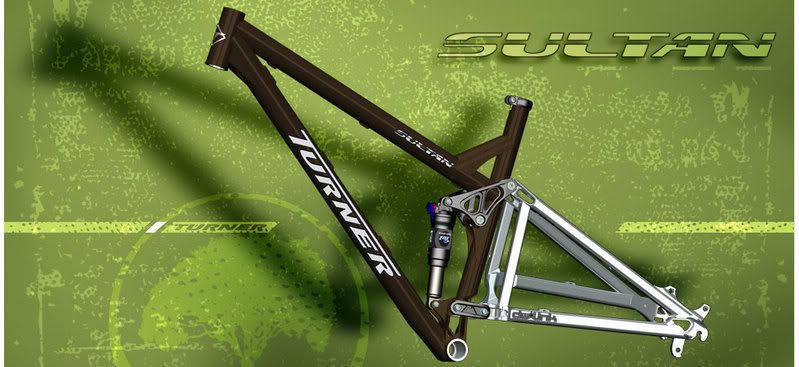

09-10 Sultan - DWL Setups - Specifications

Sulty DWL
<!-- / icon and title --><!-- message -->
I'll do all models the same way so shes starting clean! and if a Mod can move them into the data base at some stage that would be good also please modify if needed.



GEO may change so as of current on Turnerbikes 09 website

https://www.turnerbikes.com/09sultan.html


Sultan:
Travel - 4.7" [ 120mm]
Weight - 6.8lbs [3.08kgs]
Class - 29r cross country

Speccifications:
Shock - RP23 [7.5 x 2.0]
Linkage - DW Link
Front Der - 34.9mm [traditional top pull]

Head Tube - 1.125
Head Angle - 70.5 deg
Seat Angle - 73 deg
Seat Post - 30.9mm
Chain Stay - 18.2
BBracket - 73mm
BB Height - 13.4"

Stock colors - Gloss White .& Bronz Glimmer

GEO
Virtual TT - SML - 22.5 / MED - 23.25 / LRGE - 24.25 / XL - 25.25 / 2XL - 26
Seattube - SML - 15.5 / MED - 17 / LRGE - 19 / XL- 21 / 2XL - 23
Headtube - SML - 3 / MED - 3.5 / LRGE - 4.3 / XL - 5.3 / 2XL - 6.3
Standover - SML 28.7 / MED - 30 / LRGE - 32 -/ XL - 33 / 2XL - 34

Specifications above based on 525mm axle to crown fork using 29 x 2.2" tires

Bike setup:
* Frame Size & Color:
* Rear Shock:
* Fork:
* Brakes:
* Shifter:
* Cranks:
* Chainguide:
* Rear Derailleur:
* Pedals:
* Stem:
* Handlebar:
* Seatpost:
* Saddle:
* Bottom Bracket:
* Chainring:
* Cassette:
* Headset:
* Grips:
* Front Tire:
* Front Rim:
* Front Hub:
* Rear Tire:
* Rear Rim:
* Rear Hub:

* Future changes:

*Rider Setup
*Weight:
*Height:





·
Registered
Joined
·
12 Posts
* Main purpose: Longer XC style rides and endurance races.
* Trail terrain: East coast single track, try to limit amount of major rock-garden trails.

Bike setup:
* Frame Size & Color: Large white
* Rear Shock: RP23
* Fork: Manitou Minute 29, 120mm with 20mm axle
* Brakes: Shimano XT BR-M775 180mm Rear Rotor 203mm Front
* Shifter: Shimano XT Rapidfire Plus SL-M770
* Cranks: Shimano XT FC-M770 175mm
* Rear Derailleur: Shimano XT Shadow RD-M772 Long Cage
* Pedals: Crank Brothers Egg Beater Ti
* Stem: FSA OS-115 White Stem, 120mm
* Handlebar: Easton Monkeylite XC, Lo-rise 31.8mm
* Seatpost: Thomson Elite Seatpost, Silver
* Saddle: Fizik Gobi XM Saddle Anthracite/Anthracite
* Bottom Bracket: Shimano XT
* Chainring: Shimano XT
* Cassette:Shimano XTR CS-M970, 12/34
* Headset: Chris King, red
* Grips: Ergon GP1 Superlight Grip, Small
* Front Tire: Schwalbe Racing Ralph Evo 29 Tire 2.25
* Front Rim: Stan's Flow
* Front Hub: Industry Nine 20mm, red & red spokes
* Rear Tire: Schwalbe Racing Ralph Evo 29 Tire 2.25
* Rear Rim: Stan's Flow
* Rear Hub: Industry Nine, red & red spokes

* Future changes: none planned.

*Rider Setup
**Weight: 218 lbs
**Height: 6' 1", 35" inseam
*** Build Weight: I'll check when I get it. I'm expecting ~27 lbs.


·
Registered
Joined
·
1,179 Posts
Purpose-XC/Endurance racer
Frame-Large white, DT swiss carbon shock
Fork-'09 Reba 120 w/maxle lite
Headset-CC 110 Red
Stem-X4
Bar-EC90
Grips-ESI
Post-EC90
Saddle-WTB devo
Cranks-XTR
Shifters-XTR
Cables-Jagwire
Front and rear derraileurs-XTR
Cassette-XTR/action tec, 12-39
Brakes-Formula R1's or Marta Mag's 200/180 rotors
Wheelset-I9's/Arch rims
Tires-Racing Ralphs/Toro's
Build weight 26-27lbs
Pilot-6'1", 34" inseam, 180lbs


·
Your Best Friend
Joined
·
5,434 Posts
Intended purpose: Endurance Racing

Bike setup:
* Frame Size & Color:XL Bronze Glimmer
* Rear Shock: Fox RP23
* Fork: Fox F29 120mm
* Brakes:Formula Oro Puro 180/160mm
* Shifter: XO Gripshift
* Cranks: XTR
* Chainguide: N/A
* Front Derailleur: XTR
* Rear Derailleur: XO
* Pedals: Speedplay SS
* Stem: Easton 110mm alu.
* Handlebar: Easton Monkeylite carbon rise
* Seatpost: Easton Carbon
* Saddle: WTB Devo Carbon
* Bottom Bracket: Chris King Gold
* Chainring: XTR
* Cassette: XTR
* Headset: Chris King Gold
* Grips: ODI
* Front Tire: Kenda Karma 2.2
* Front Rim: Mavic TN 819
* Front Hub: Chris King ISO Gold
* Rear Tire: Kenda Karma 2.1
* Rear Rim: Mavic TN 819
* Rear Hub: Chris King ISO Gold

* Estimated Weight: High 26lbs
* Future changes: Possibly the tires

*Rider Setup
*Weight: 200lbs
*Height: 6'3"


·
Expert Crasher
Joined
·
6,358 Posts
cactuscorn said:
mods: please block this thread till these yahoos get some pics up.
I second the motion :thumbsup:



·
bike weenie
Joined
·
589 Posts
this thread needs photos

Bike setup:
* Frame Size & Color: XL Raw
* Rear Shock: RP23
* Fork: Fox F29 120mm
* Brakes: Hope mono mini pro
* Shifter: XTR
* Cranks: XTR
* Bash: E13
* Rear Derailleur: XTR
* Pedals: Time titanium
* Stem: Thomson
* Handlebar: Easton monkeylite SL
* Seatpost: Race face next
* Saddle: Specialized Phenom SL
* Bottom Bracket: Chris King
* Chainring: XTR
* Cassette: XTR
* Headset: Chris King
* Grips: ESI
* Front Tire: Ignitor
* Front Rim: DT
* Front Hub: I9 enduro
* Rear Tire: Ignitor
* Rear Rim: DT
* Rear Hub: I9 Enduro

Weight: 27.8lbs

* Future changes: grips, tires

*Rider Setup
*Weight:170
*Height:6'3"


Attachments

·
Az HS Cycling League
Joined
·
325 Posts
Here is mine...

<a href="https://s222.photobucket.com/albums/dd20/cpstew/?action=view&current=PC150016.jpg" target="_blank"><img src="https://i222.photobucket.com/albums/dd20/cpstew/PC150016.jpg" border="0" alt="Photobucket"></a>

<a href="https://s222.photobucket.com/albums/dd20/cpstew/?action=view&current=PC150012.jpg" target="_blank"><img src="https://i222.photobucket.com/albums/dd20/cpstew/PC150012.jpg" border="0" alt="Photobucket"></a>

<a href="https://s222.photobucket.com/albums/dd20/cpstew/?action=view&current=PC150017.jpg" target="_blank"><img src="https://i222.photobucket.com/albums/dd20/cpstew/PC150017.jpg" border="0" alt="Photobucket"></a>

<a href="https://s222.photobucket.com/albums/dd20/cpstew/?action=view&current=PC150014.jpg" target="_blank"><img src="https://i222.photobucket.com/albums/dd20/cpstew/PC150014.jpg" border="0" alt="Photobucket"></a>

<a href="https://s222.photobucket.com/albums/dd20/cpstew/?action=view&current=PC150015.jpg" target="_blank"><img src="https://i222.photobucket.com/albums/dd20/cpstew/PC150015.jpg" border="0" alt="Photobucket"></a>

Main purpose: pleasure
* Trail terrain: Arizona
* Frame Size: XXL
* Frame Year: 2009
* Color (frame/rear triangle): Raw
* Shock: Fox RP23 large air volume can
* Fork: '09 Reba Team Maxle Lite
* Brakes: XT Hydro
* Brake Levers: XT
* Cranks: Shimano XT
* BB: Chris King
* Shifters: XTR
* Front Derailleur: Shimano XT
* Rear Derailleur: XTR
* Chain: XTR
* Pedals: Candy twin Ti
* Stem: Thomson X4 90mm
* Handlebar: Easton Monkeylite XC
* Seatpost: Thomson 30.9 x 410mm
* Saddle: WTB
* Cassette: XT
* Headset: Chris King
* Grips: Specialized lock on
* Front Tire: Specialized Resolution 2.3 (tubeless)
* Front Rim: Stans Flow
* Front Hub/Skewer: XTR 20mm
* Rear Tire: Secialized Resolution 2.3 (tubeless)
* Rear Rim: Stans Flow
* Rear Hub/Skewer: XTR
* Seatpost Collar: stock
**Rider Weight (w/gear): 220 lbs
***Rider Height and inseam: 6"4" tall; inseam 37"
**** Build Weight: 29.49 lbs


·
Registered
Joined
·
27 Posts
Bike setup:
* Frame Size & Color: XL Raw
* Rear Shock: RP23
* Fork: Reba Team w/maxle light 120mm
* Brakes: Hope mono M4 (front), mini (rear)
* Shifters: XT
* Cranks: XTR M952 (love the narrow q-factor)
* Bash: Blackspire
* Front Derailleur: XTR
* Rear Derailleur: Shadow XT
* Pedals: Time ATAC XS
* Stem: Thompson
* Handlebar: Easton monkey lite XC
* Seatpost: Thompson
* Saddle: Specialized Alias
* Bottom Bracket: XTR
* Cassette: XT
* Headset: Cane Creek 110
* Grips: ODI
* Front Tire: Rampage
* Front Rim: Flow
* Front Hub: Hope Pro II 20mm
* Rear Tire: Michelin XC
* Rear Rim: Flow
* Rear Hub: Hope Pro II 10mm

Weight: ??.??

*Rider
*Weight:185
*Height:6'2"


Attachments

·
Registered
Joined
·
64 Posts
I haven't seen a bronze one posted yet, so I thought I show y'all mine. Thanks to Kris @ Go-Ride for building it up. I haven't had a chance to ride it yet, as we have over a foot of snow everywhere around here.

Bike setup:
* Frame Size & Color: Medium Bronze
* Rear Shock: Fox RP23
* Fork: RockShox Reba Team 120mm with 20mm Thru-axle
* Brakes: Avid Elixir CR
* Shifters: SRAM X.0 Twist
* Cranks: Shimano XTR
* Front Derailleur: Shimano XTR
* Rear Derailleur: SRAM X.0
* Pedals: Crank Bros Eggbeater 4Ti
* Stem: Thomson X4
* Handlebar: Easton Monkey-Lite XC
* Seatpost: Thomson Masterpiece
* Saddle: WTB Rocket V SLT
* Bottom Bracket: Chris King
* Cassette: Shimano XT
* Headset: Cane Creek 110
* Grips: ODI Ruffian Lock-Jaw
* Tires: Specialized The Captain 2.2 2Bliss
* Wheels: Mavic C29ssmax

Weight: Just under 27lbs.

*Rider
*Weight: 135
*Height: 5'8"


Attachments

·
Registered
Joined
·
278 Posts
Bike setup:
* Frame Size & Color: xl color is not normal black
* Rear Shock: rp23
* Fork: reba maxle 120
* Brakes: elixer r
* Shifter: xo
* Cranks: noir set up as a double
* Chainguide:
* Rear Derailleur: xo
* Pedals: acid
* Stem: truvativ aka 90 mm
* Handlebar: stylo wc
* Seatpost: thomson
* Saddle: fizik gobi
* Bottom Bracket: truvativ
* Chainring:
* Cassette: sram 990
* Headset: cane creek 110
* Grips: odi ruffian
* Front Tire: nevegal
* Front Rim: salsa gordo
* Front Hub: wtb
* Rear Tire: nevegal
* Rear Rim: stans flow
* Rear Hub: I9

* Future changes: new wheels/ elixer cr/ maybe some stylo OCT/

bike weight: 29.5 # 's



·
not so super...
Joined
·
11,466 Posts
Bike setup:
* Frame Size & Color: Medium - White
* Rear Shock: Fox RP23
* Fork: Minute 29'r
* Brakes: Hope Moto w/ Goodridge lines
* Shifter: X.0 w/ Goodridge housing/cable
* Cranks: XTR
* Chainguide: Blackspire
* Rear Derailleur: X.0
* Pedals: Shimano 646
* Stem: Thomson 70x0
* Handlebar: FSA Gravity carbon
* Seatpost: Thomson
* Saddle: WTB
* Bottom Bracket: Hope Ceramic
* Chainring: XTR w/ FSA bash
* Cassette: Sram 990
* Headset: Hope
* Grips: Ergon GX1
* Front Tire: Maxxis Ardent 2.25
* Front Rim: Stans Flow
* Front Hub: I9 20mm axle
* Rear Tire: Maxxis Ardent 2.25
* Rear Rim: Stans Flow
* Rear Hub: I9 w/ Hadley 10mm axle

* Future changes:
Waiting for someone to make a fork worthy of the DW Sultan



·
Registered
Joined
·
257 Posts
Bike Setup:
*Frame Size & Color: L, Raw
*Rear Shock: Fox RP23
*Fork: '09 Reba Team 120mm w/ Maxle Lite
*Brakes: Hope Tech M4/Tech X2 183mm/160mm
*Shifter: X.O Trigger
*Cranks: Raceface Next Carbon
*Front Derailleur: XTR
*Rear Derailleur: X.O
*Cables: Nokon
*Pedals: Eggbeater SL
*Stem: FSA OS-99
*Handlebar: Raceface Next SL
*Seatpost: Thompson Masterpiece
*Saddle: Selle Italia Prolink Lite Gelflow
*Bottom Bracket: Raceface X-Type
*Chainrings: Raceface Team
*Cassette: XTR 11-34
*Headset: Cane Creek 110
*Grips: ODI Rogue
*Front Tire: Mountain King 2.2
*Front Rim: Stan's Flow
*Front Hub: I9 Enduro 20mm TA
*Rear Tire: Mountain King 2.2
*Rear Rim: Stan's Flow
*Rear Hub: I9 Enduro 10 x 135
*Weight: 27.0 lbs.

Future changes
*Scrub Components Rotors
*Ti Bolts
*Joplin R?
*Wider tires!

Rider:
*Weight: 155 lbs.
*Height: 5' 10.5”


Attachments

·
Registered
Joined
·
359 Posts
09 Dw Sultan

Bike setup:
* Frame Size & Color: LG -Bronze
* Rear Shock: Fox RP23
* Fork: White Brothers Fluid 135
* Brakes: Formula Bianco
* Shifter: Sram X9
* Cranks: Shimano XT
* Chainguide: Syncros Bash
* Rear/FR Derailleur: Sram X9/Shimano XT 771
* Pedals: Shimano XTR
* Stem: Sunline 80mm
* Handlebar: Sunline
* Seatpost: Thomson
* Saddle: Charge
* Bottom Bracket: XT
* Chainring: Shimano 32T
* Cassette: Shimano XT
* Headset: Cane Creek 110
* Grips: Lizard Skin Peaty
* Front Tire: WTB Stout
* Front Rim: ZTR Flow
* Front Hub: Hadley
* Rear Tire: WTB Prowler
* Rear Rim: ZTR Flow
* Rear Hub: Hadley 10mm

* Future changes:

*Rider Setup
*Weight: 220
*Height: 6’







·
Your Best Friend
Joined
·
5,434 Posts
Finally!! XL Sultan

Just got it today! Now if only the trails will dry up enough so I can ride it on more than just the pavement.

Intended purpose: Endurance Racing

Bike setup:
* Frame Size & Color:XL Bronze Glimmer
* Rear Shock: Fox RP23
* Fork: RS 120mm Reba Team w/U-turn and Maxle light
* Brakes:09 Magura Marta SL 180/160mm
* Shifter: XO Gripshift
* Cranks: XTR
* Front Derailleur: XTR
* Rear Derailleur: XO
* Pedals: Speedplay SS
* Stem: Easton EA 90 100mm alu.
* Handlebar: Easton EC 90 Monkeylite XC carbon low rise
* Seatpost: Easton EC 90 Carbon
* Saddle: WTB Devo Carbon w/Ti rails
* Bottom Bracket: Chris King Gold
* Chain: Sram PC-991
* Cassette: XTR 11-34
* Headset: Chris King Gold
* Grips: ODI Rogue
* Front Tire: Maxxis Ignitor 2.1/Kenda Small Block 8 2.1 (take off 42 grams)
* Front Rim: Stans ZTR 355
* Front Hub: Chris King ISO Gold 20mm Thru-axle.
* Rear Tire: Maxxis Ignitor 2.1/Kenda Small Block 8 2.1 (take off 42 grams)
* Rear Rim: Stans ZTR 355
* Rear Hub: Chris King ISO Gold
* Rear Skewer: DT Swiss RWS steel
* Spokes: DT Swiss Supercomp 14/16/15g

* Confirmed Weight:27lbs 7oz. (w/Ignitors)
* Future changes: Rider losing more weight!

*Rider Setup
*Weight: 196lbs
*Height: 6'3"


Attachments

1 - 20 of 119 Posts
Top
